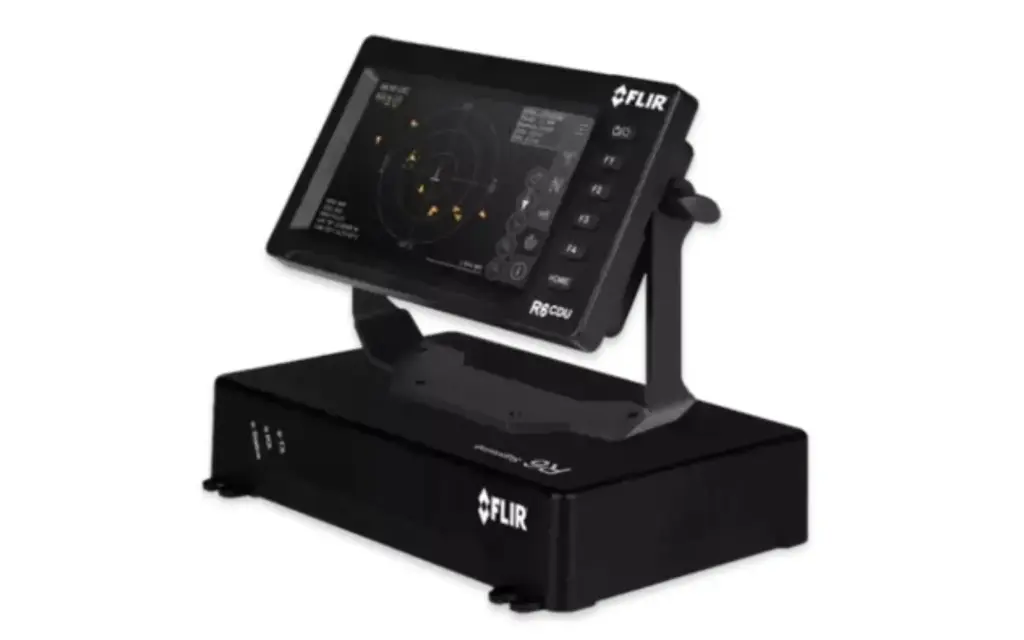

R6 Supreme AIS – Type‑approved AIS Class‑A with advanced SDR and VDES‑ready capability
The TransponderTech R6 Supreme AIS is a next‑generation AIS Class‑A transponder system built around a modern Software Defined Radio (SDR) architecture and engineered to meet demanding SOLAS AIS Class‑A carriage requirements. Type‑approved to IEC 61933‑2 and compliant with international cybersecurity standards for navigation and radio communication systems, the R6 Supreme AIS provides high‑integrity performance for commercial and government vessels that require reliable AIS operation under challenging RF and operational conditions.
Designed with a VDES‑ready platform, the R6 Supreme AIS offers exceptional receiver sensitivity (better than –118 dBm), enabling superior signal reception and extended range beyond conventional AIS systems. The intuitive R6 Control & Display Unit (CDU) features a 7‑inch sunlight‑readable touch display, ensuring clear visibility and simple interaction for bridge teams. A built‑in system web interface further supports configuration, diagnostics and maintenance over secure onboard networks.
Documents
Key features
- AIS Class‑A transponder type‑approved to IEC 61933‑2
- VDES‑ready SDR architecture for next‑generation maritime data services
- High‑sensitivity receiver exceeding –118 dBm for improved signal reception and extended range
- Cybersecurity‑compliant design meeting IEC standards for navigation and radio communications

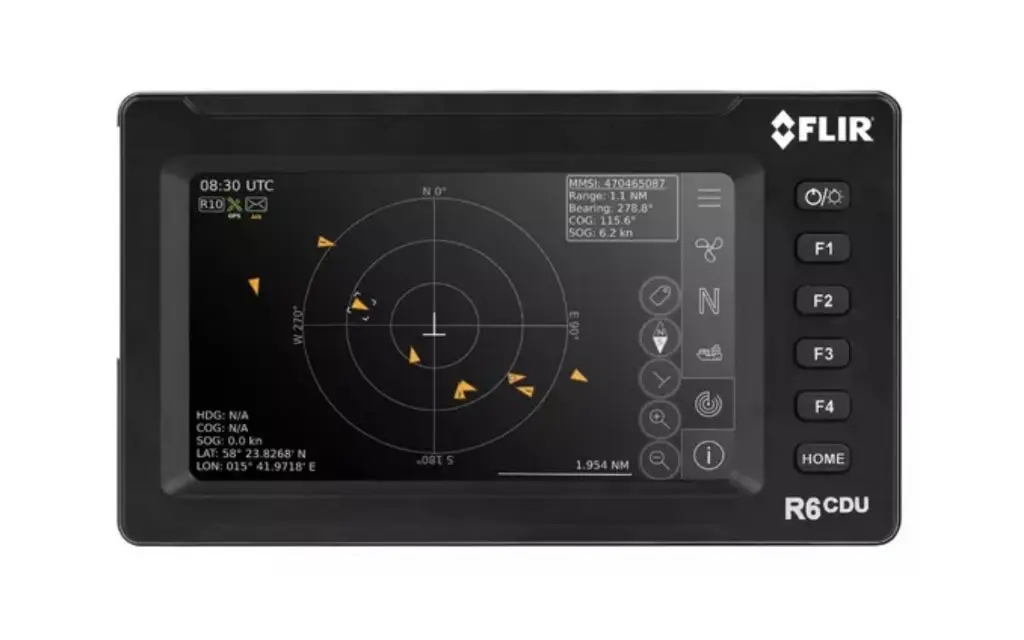

- 7" sunlight‑readable R6 Control & Display Unit with intuitive touch interface and central dimming
- Built‑in system web interface for configuration, diagnostics and long‑term support
- Dual IEC 61162‑450 network interfaces for modern, high‑bandwidth bridge integration
- Multi‑GNSS receiver, type‑approved for GPS and Galileo
- Certified MED‑B (Wheelmark), FCC, IC, UKCA, CCS
- Suitable for SOLAS‑class, coastal and commercial vessels operating in mixed environments
Typical Application
- SOLAS‑class commercial vessels
- Meeting AIS Class‑A carriage requirements with enhanced performance and cybersecurity
- Coastal and offshore commercial fleets
- Cargo vessels, tankers, support vessels, ferries, crew transfer vessels
- Government and enforcement craft
- Coast guard, coastal authority and maritime agency vessels requiring reliable AIS data
- Modernised bridge systems
- INS/ECDIS installations requiring dual IEC 61162‑450 networking and secure integration
